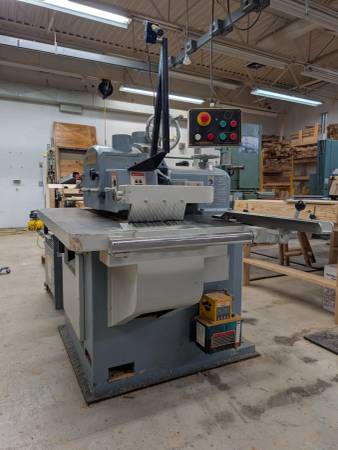

Northtech SRS-12H Straight Line Rip Saw - $9,500 (Maryville, TN)
QR Code Link to This Post
Main Motor 480v 15 HP (with Wye Delta soft start)
Feed Motor 1 HP, variable speed
Feed Speed Mechanical variable speed, 45 - 100 FPM (feet per minute)
Max Cutting Thickness 3-1/2"
Min Workpiece Length 8" (first roller to kickback)
Blade Capacity 12" diameter
Arbor Diameter 1"
Throat Capacity 15-1/2" (distance from column to blade)
Table Size Approximately 31" x 49-3/8" cast iron
Glue Line Tolerance Guaranteed 8' glue line on 4/4 stock at 50 FPM
Weight Approximately 1,790 - 2,100 lbs (net/gross)
Key Features
Accurate Glue Joints: The primary function is to produce highly accurate, straight cuts suitable for immediate glue-up without needing a separate edge jointer, a feature highly praised by users in woodworking forums.
Durable Construction: The machine features a cast iron table and frame, a single-piece steel chain, and a robust pressure housing with spring-loaded hold-down rollers, contributing to its heavy-duty performance.
Safety: Includes essential safety features like bottom and top kickback fingers, a safety interlock switch, and a guarded saw blade.
A digital electronic oiler system provides consistent lubrication with a low oil alarm, maximizing chain and race life. It also comes standard with an industrial series laser guide line for precise material positioning.
This is a reliable, heavy-duty workhorse that performs exceptionally well in a production environment.
Reviewers on Sawmill Creek praise the saw for its virtually invisible saw marks and finish that is at least as good as an edge jointer, making secondary finish ripping unnecessary.
The machine's 15 HP motor allows material to be moved through at high speeds without bogging down.
The build quality is excellent. This machine is in "like new" condition with a "super clean" table and chain. The laser guide is “spot on” to 16’ of rough sawn timber, producing hardly zero waste.
This is a must have tool for anyone using rough sawn material in a production shop.
This machine is wired 480 Delta. I can include a 2 year old Square D 15KVA transformer from 208Y to 480D for an additional $750.
You can look up the model number and find all of the information you need so I will not answer too many questions about this machine other than where it is, and how you can pick it up. If you know what it is, you either want it or don’t want it. It is not currently wired. Last used 2 months ago. I am very reluctantly selling most of my 3 phase equipment.
IN PERSON, CASH ONLY. No apps, checks, bitcoins, etc..
– Nigerian princes have zero chance here. But we will not discriminate!
